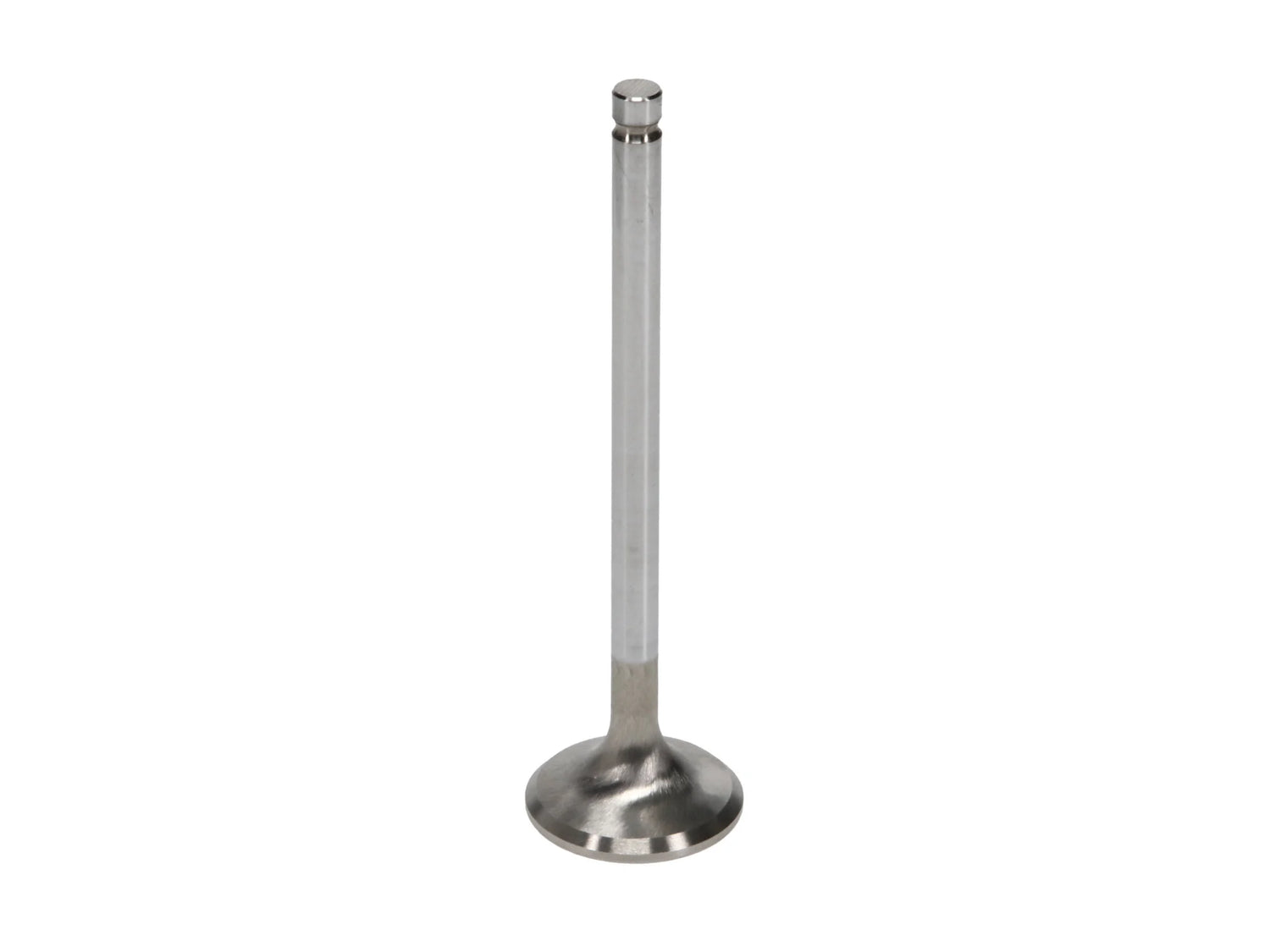

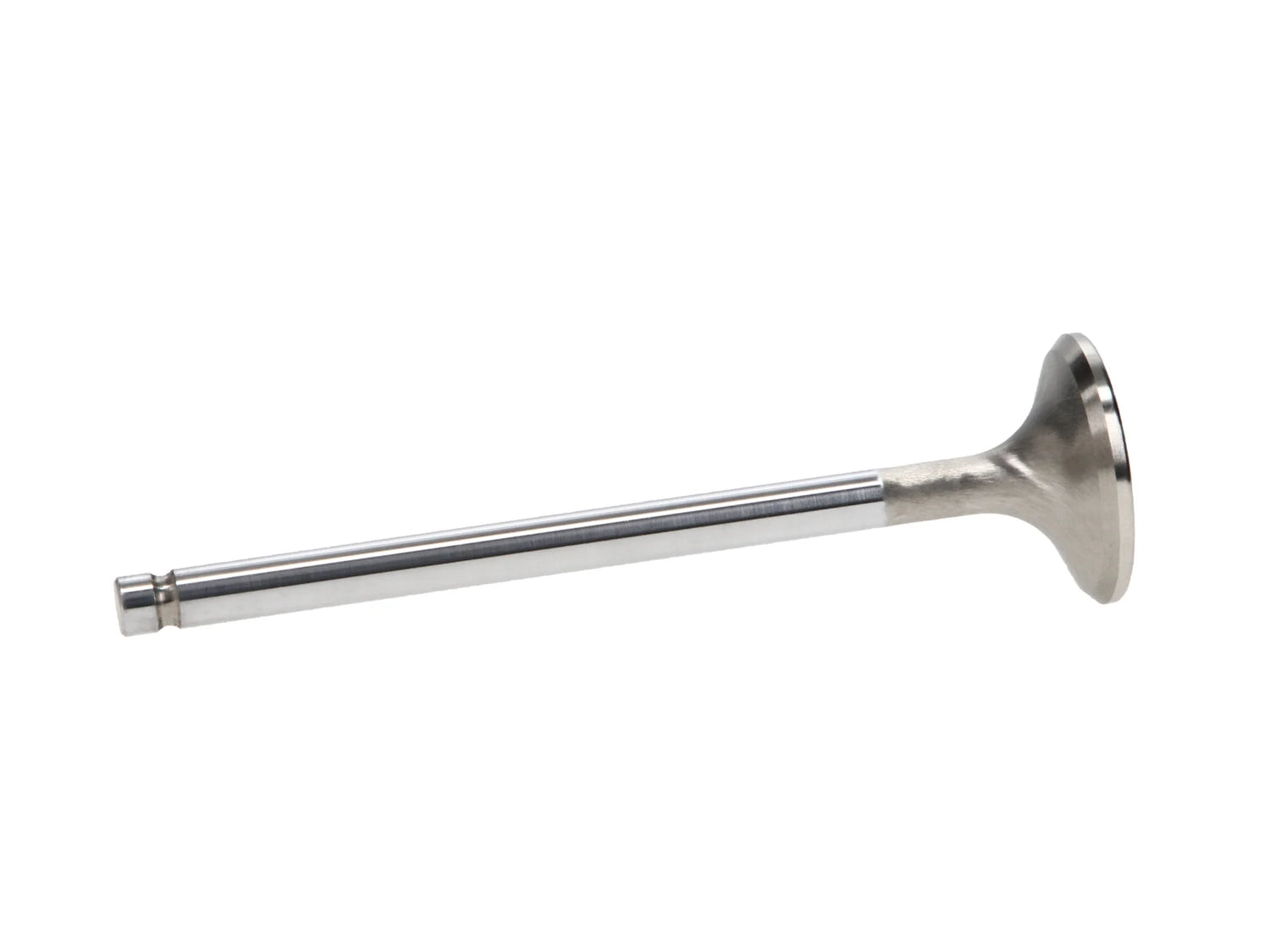

Manley Race Series Toyota 5.7L 3UR-FE Intake Valve Kit – 38.50 Mm
Manley Race Series Toyota 5.7L 3UR-FE Intake Valve Kit – 38.50 Mm is backordered and will ship as soon as it is back in stock.
Manley’s Race Series valves are meticulously engineered to meet the rigorous demands of bracket, drag, and oval track racers and are the ultimate choice for engines operating under 8000 RPM
- Stainless Steel Construction: Both exhaust (XH-426) and intake (NK-842) valves are constructed from high-quality stainless steel for unparalleled durability.
- Chrome Stems and Hard Tips: Chrome stems and hard tips are incorporated for enhanced longevity and wear resistance.

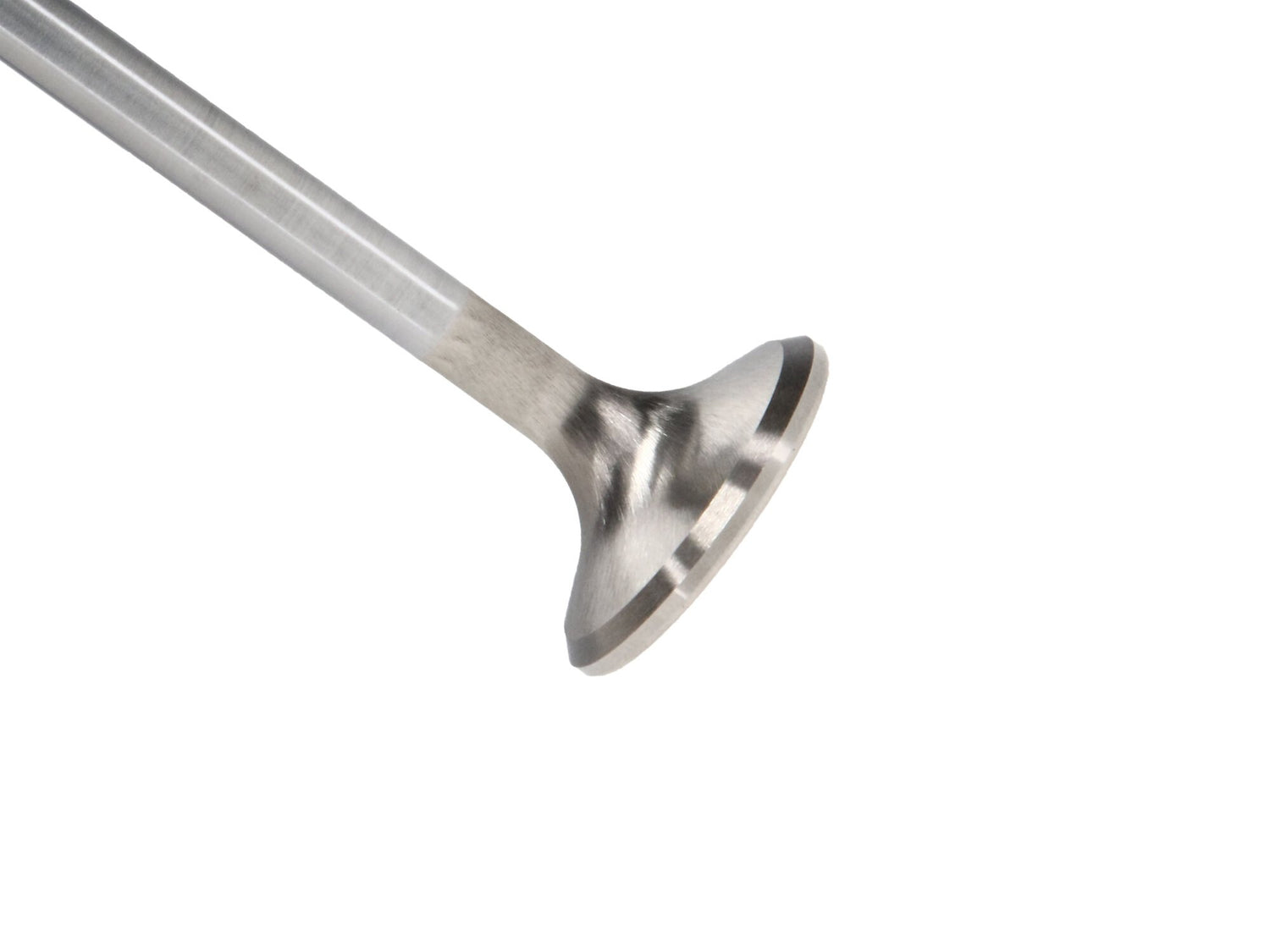

- Swirl Polished and Fully Machined: The valves feature swirl polished under head areas and fully machined combustion faces to optimize airflow and combustion efficiency.
- Variety of Shapes: Choose between Race Master (Straight Stem) and Race Flo shapes to suit your racing engine’s specific requirements.
- Recommended for Alcohol Engines: These valves are the recommended choice for exhaust valves in alcohol engines, ensuring reliable performance even in demanding conditions.
| Head Diameter |
38.50 MM |
|---|---|
| Stem Diameter |
0.2155, 5.47 MM |
| O/A Length |
106.05 MM |
| Tip Length |
5.59 MM |
| Margin Width |
0.050 IN |
| Seat Width |
0.100 IN |
| Top Of Head |
Flat Face |
| Underhead Angle |
10.00 DEG |
| Underhead Radius |
1/4 IN |
| Valve Series |
Race Series |
| Valve Sub-Series |
Race Master |
| Product Type |
Engine Intake Valve Kit |
| Valve Quantity |
16 |
| Engine Detail – Web |
5.7L 3UR-FE |
